The thermal vacuum test chamber features powerful thermal load capacity and high-precision surface temperature control for test articles. It enables rapid temperature rise and fall, greatly improving test efficiency and providing strong support for scientific research and production in the aerospace field.

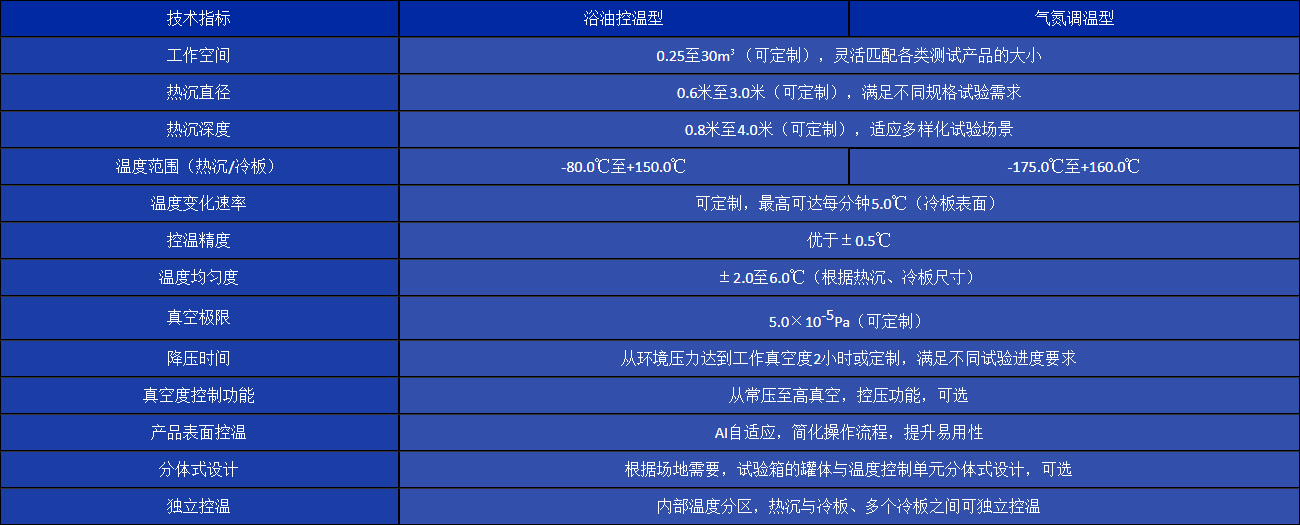

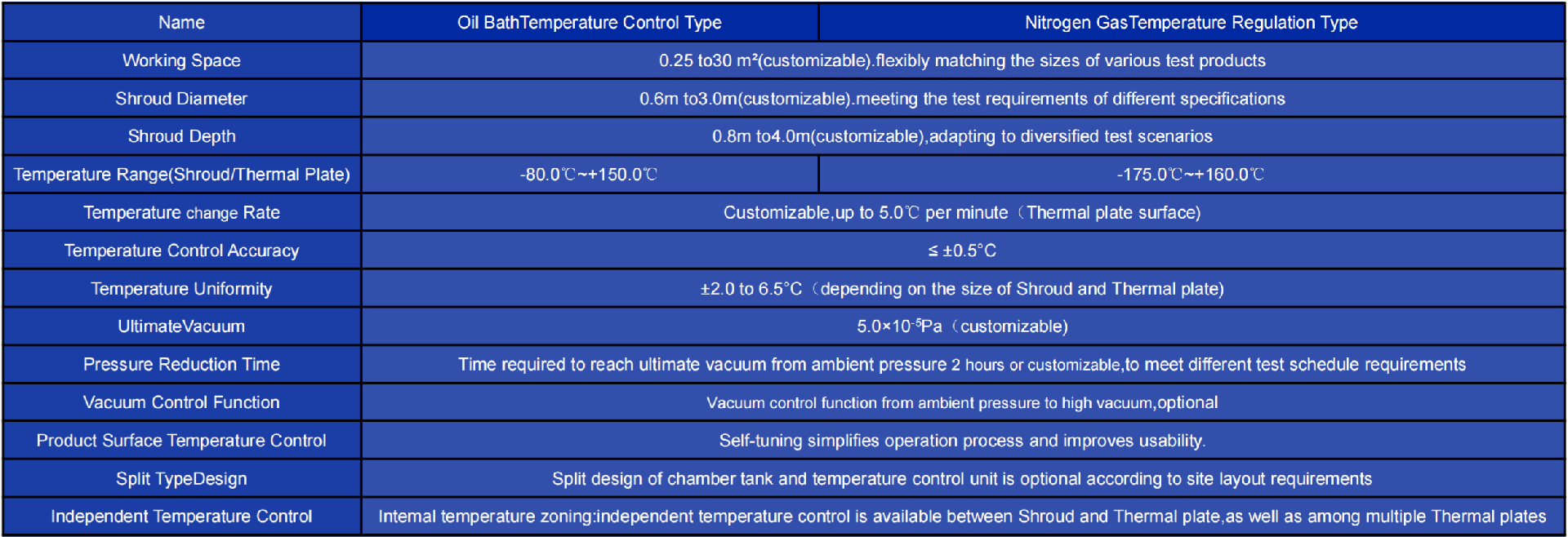

Specification:
Shroud diameter: 0.6m to 3.0m (customizable), according to the test requirements of different specifications.
Shroud depth: 0.8m to 4.0m (customizable) , suitable for diversified testing scenarios.
Shroud volume: 250-liter to 30,000-liter (customizable) , flexibly matching the sizes of various test products.
Shroud / Thermal plate temperature range (customizable):
* -80.0 to +150.0 ℃, by conduction fluid.
* -150.0 to +150.0 ℃, by gaseous nitrogen.
Temperature transition rate: customizable, 1.0 to 5.0℃ /min (by conduction fluid, thermal plate surface).
Temperature control accuracy: ≤±0.5℃.
Shroud temperature uniformity: ≤±2.0℃.
High vacuum degree limit: 5.0x10-5Pa (customizable).
From ambient pressure to limit: 3 hours or customizable to satisfy different test requirements.
Vacuum regulation function from atmospheric pressure to high vacuum: optional.
